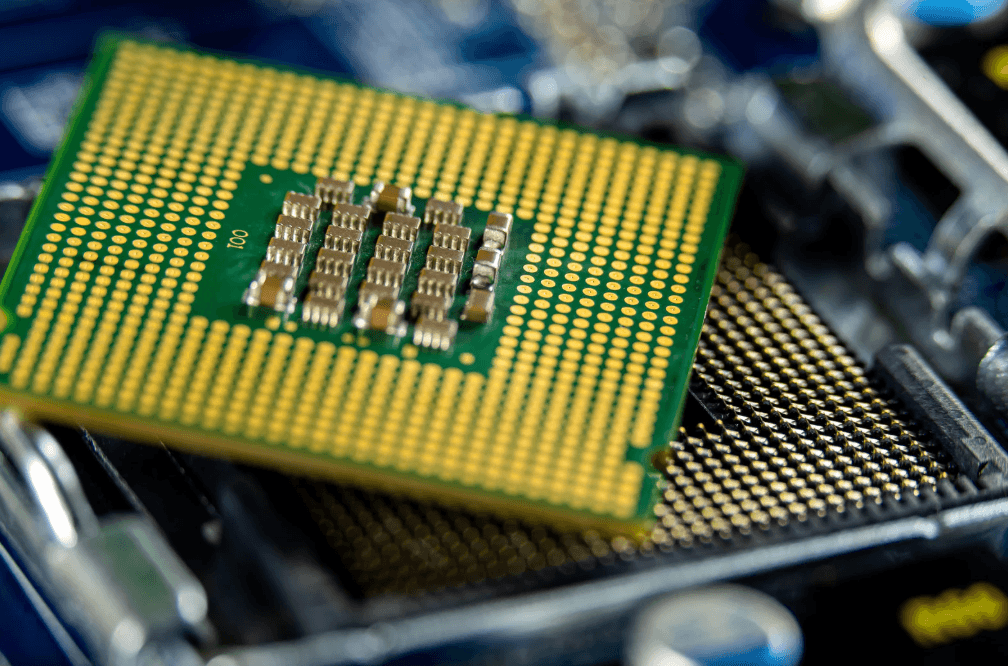

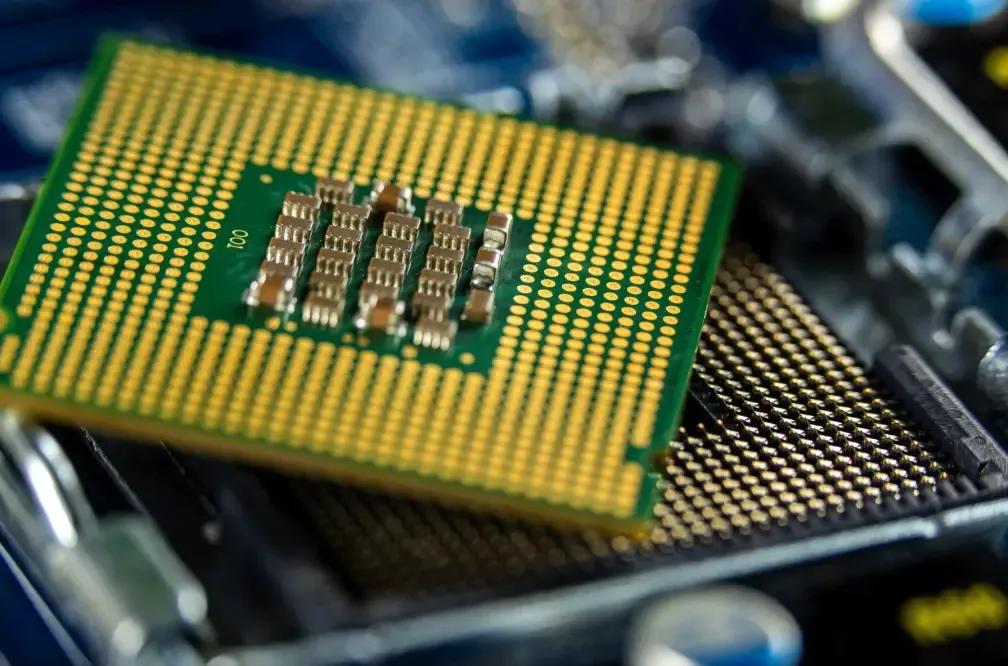

The central processing unit, or CPU, is often referred to as the brain of a computer. It is the core component responsible for executing instructions, processing data, and ensuring the smooth operation of both the operating system and applications. From simple arithmetic calculations to complex data processing, the CPU handles it all.
Understanding “what is a CPU” goes beyond knowing its definition. For engineers and electronics professionals, it’s about grasping the underlying architecture, capabilities, and advancements that drive modern computing systems. Whether designing embedded systems, optimizing industrial automation, or developing high-performance devices, the CPU plays a pivotal role in shaping functionality and efficiency.
In this article, we’ll explore the evolution, architecture, and applications of the CPU, highlighting why it remains one of the most critical components in electronics today.
Historical Evolution of the CPU
The journey of the central processing unit (CPU) mirrors the evolution of modern computing. From its humble beginnings to the highly advanced chips we use today, CPUs have undergone significant transformations to meet growing computational demands.
Early CPUs were built using vacuum tubes, which were bulky, fragile, and consumed large amounts of power. The invention of the transistor in the late 1940s revolutionized computing by offering a smaller, faster, and more reliable alternative. This breakthrough paved the way for the development of integrated circuits in the 1960s, which allowed multiple transistors to be packed onto a single chip.
The introduction of microprocessors in the early 1970s marked another pivotal moment. Intel’s 4004, released in 1971, was the first commercially available microprocessor that consolidated the core functions of a CPU onto a single chip. This innovation made computing more accessible and laid the foundation for the personal computer revolution.
Since then, advancements in semiconductor technology have enabled exponential growth in CPU performance. Moore’s Law predicted that the number of transistors on a chip would double approximately every two years, and for decades, this held true. Modern CPUs now feature billions of transistors and deliver incredible processing power and efficiency.
Today’s CPUs not only execute instructions but also integrate advanced features like parallel processing, energy efficiency, and specialized architectures. These advancements are shaping the future of computing and influencing everything from personal devices to industrial systems.
Key Components of a CPU
A central processing unit (CPU) may appear as a single chip, but it is a complex system of interconnected components working in harmony to process instructions and data efficiently. Each part of the CPU is designed to handle specific tasks for seamless performance.
Arithmetic Logic Unit (ALU)
The ALU is the workhorse of the CPU. It performs mathematical operations such as addition, subtraction, multiplication, and division, as well as logical comparisons like AND, OR, and NOT. Whenever a calculation or decision-making process is required, the ALU takes charge.
Control Unit (CU)
The control unit acts as the CPU’s director, orchestrating the flow of instructions and data. It decodes instructions fetched from memory, determines the required operation, and signals other components to execute the task. Without the CU, the CPU would lack coordination and direction.
Registers
Registers are small, high-speed storage locations within the CPU that temporarily hold data and instructions that the CPU is actively working on. Their proximity to the ALU and CU allows for rapid access, significantly speeding up processing tasks.
Cache Memory
Cache memory is a specialized, ultra-fast storage layer located close to or inside the CPU. It stores frequently used instructions and data, reducing the time required to access them from main memory (RAM). This minimizes delays and boosts overall performance.
These components form the backbone of every CPU, working together to execute instructions efficiently. Whether it’s a simple task like opening an application or a complex process like rendering 3D graphics, these building blocks ensure the CPU operates at peak performance. Understanding these elements provides valuable insight into how the CPU functions as the brain of modern computing systems.
How a CPU Works
At the heart of every computing device is the CPU executing millions of instructions per second. Understanding how a CPU operates sheds light on its remarkable efficiency and adaptability.
The Fetch-Decode-Execute Cycle
The CPU operates using a repetitive process known as the fetch-decode-execute cycle. Here’s how it works:
- Fetch: The CPU retrieves an instruction from the system’s memory (RAM). This instruction is stored temporarily in a register for quick access.
- Decode: The control unit interprets the fetched instruction, breaking it into smaller, manageable commands that other components can execute.
- Execute: The ALU or another relevant component carries out the decoded instruction. This could involve performing a calculation, transferring data, or interacting with hardware.
This cycle repeats billions of times per second.
Clock Speed
The speed at which the CPU processes instructions is measured in clock cycles, often represented in gigahertz (GHz). A higher clock speed means more cycles per second, resulting in faster execution of instructions. While clock speed is a critical performance metric, it’s not the sole factor; architecture and core count also play significant roles.
Instruction Set Architecture
Every CPU operates based on an instruction set architecture (ISA), a predefined set of commands the processor can execute. Common ISAs include x86 and ARM. The choice of ISA influences a CPU’s capabilities, performance, and compatibility with software.
Parallel Processing
Modern CPUs use multiple cores to execute instructions simultaneously. Tasks are divided across cores, which allows the processor to handle complex workloads more efficiently. This approach is particularly valuable for applications like video rendering, simulations, and multitasking. By combining the fetch-decode-execute cycle, clock speed optimization, and parallel processing, CPUs achieve extraordinary performance.
Types of CPUs
CPUs come in various forms, each designed to meet specific performance and application needs.
Single-Core vs. Multi-Core Processors
● Single-Core CPUs: The earliest CPUs had only one core, and could handle one task at a time. While sufficient for simple tasks, they had significant limitations as software grew more complex.
● Multi-Core CPUs: Modern processors often feature two, four, eight, or even more cores. Each core operates independently, which enables the CPU to handle multiple tasks simultaneously.
Microprocessors vs. Microcontrollers
● Microprocessors: These are general-purpose CPUs found in computers and high-performance devices. They focus on raw processing power and rely on external components like RAM and storage for functionality.
● Microcontrollers: Designed for embedded systems, microcontrollers integrate a CPU, memory, and peripherals into a single chip. They’re commonly used in home automation, automotive systems, and IoT devices.
Specialized CPUs
● Application-Specific Integrated Circuits (ASICs): These are custom-designed CPUs built for a specific task, such as cryptocurrency mining or networking. Their tailored architecture delivers unparalleled efficiency for their intended purpose.
● Field-Programmable Gate Arrays (FPGAs): While technically not traditional CPUs, FPGAs allow engineers to configure their functionality, so they’re suitable for applications requiring high flexibility and performance.
Embedded and Mobile CPUs
● ARM-Based Processors: ARM architecture dominates mobile and embedded systems due to its energy efficiency and performance. Found in smartphones, tablets, and IoT devices, ARM CPUs are optimized for low power consumption without sacrificing speed.
Each CPU type serves a unique role, whether driving high-performance computing systems, automating industrial processes, or powering portable devices. Choosing the right processor involves balancing factors like power, performance, and application requirements.
CPU Architectures
CPU architecture defines how a processor is designed and operates, which influences its performance, efficiency, and compatibility. Over the years, several architectural approaches have emerged, each catering to specific computing needs.
Complex Instruction Set Computing (CISC)
CISC architecture, found in Intel’s x86 CPUs, emphasizes versatility by including a broad set of instructions. Each instruction can perform complex tasks, which reduces the number of instructions a program needs. While powerful, CISC processors tend to consume more power and generate more heat, making them better suited for desktops and servers.
Reduced Instruction Set Computing (RISC)
RISC architecture simplifies the instruction set, focusing on executing fewer, more optimized instructions. This streamlined approach enhances performance and energy efficiency. ARM processors, common in mobile devices and embedded systems, are a prime example of RISC-based CPUs.
Hybrid Architectures
Modern CPUs increasingly combine elements of both CISC and RISC architectures. For instance, ARM’s big.LITTLE technology pairs high-performance cores with energy-efficient ones, dynamically balancing power and efficiency based on workload. Similarly, Intel’s latest processors integrate performance and efficiency cores to optimize multitasking and power consumption.
ARM
ARM-based processors have revolutionized mobile and embedded systems due to their exceptional energy efficiency. Their design emphasizes low power consumption without sacrificing performance, so they are ideal for smartphones, tablets, and IoT devices. The modular nature of ARM’s architecture also allows for extensive customization and tailored solutions for specific applications.
Emerging Trends in CPU Architecture
As workloads evolve, CPU architectures are becoming more specialized. Integration with GPUs for parallel processing, AI accelerators for machine learning, and hardware-level security enhancements are shaping the future of CPU design. These innovations aim to address the growing demands of modern applications while maintaining energy efficiency and performance scalability.
Advancements in CPU Technology
Recent advancements in CPU technology have redefined what processors can achieve and opened new possibilities across industries.
Parallel Processing and Multicore Architectures
Modern CPUs no longer rely solely on higher clock speeds for performance gains. Instead, they leverage multicore architectures to process multiple tasks simultaneously. Parallel processing enables CPUs to handle resource-intensive applications like video rendering, AI workloads, and large-scale simulations more efficiently.
Energy Efficiency
Energy efficiency has become a critical focus, especially with the rise of mobile and battery-powered devices. Architectures that combine high-performance and energy-efficient cores to dynamically switch between them based on workload demands extend battery life without compromising performance.
Integration with Specialized Hardware
CPUs are increasingly integrated with specialized hardware to handle tasks beyond traditional processing:
● Graphics Processing Units (GPUs) are paired with CPUs to accelerate graphics rendering and parallel processing for gaming and AI applications.
● AI Accelerators in modern CPUs are dedicated neural processing units (NPUs) for machine learning tasks that deliver faster performance for AI applications.
● System-on-Chip (SoC) designs integrate multiple components like memory, GPUs, and input/output controllers onto a single chip to reduce latency and improve efficiency.
Smaller Process Nodes
The shift to smaller process nodes has been another key driver of CPU innovation. Fabrication technologies such as 5nm and 3nm processes allow more transistors to fit onto a single chip to boost performance and reduce power consumption.
Security Enhancements
As cybersecurity threats increase, CPUs now include hardware-based security features. Technologies like Intel’s Software Guard Extensions and AMD’s Secure Encrypted Virtualization help protect sensitive data and applications from unauthorized access.
Advancements in CPU technology reflect a balance between raw processing power and adaptability to modern challenges. Whether it’s enabling high-performance computing, optimizing energy use, or integrating specialized capabilities, today’s CPUs are more versatile and capable than ever. These innovations are shaping the future of computing and unlocking new possibilities for engineers and developers alike.
