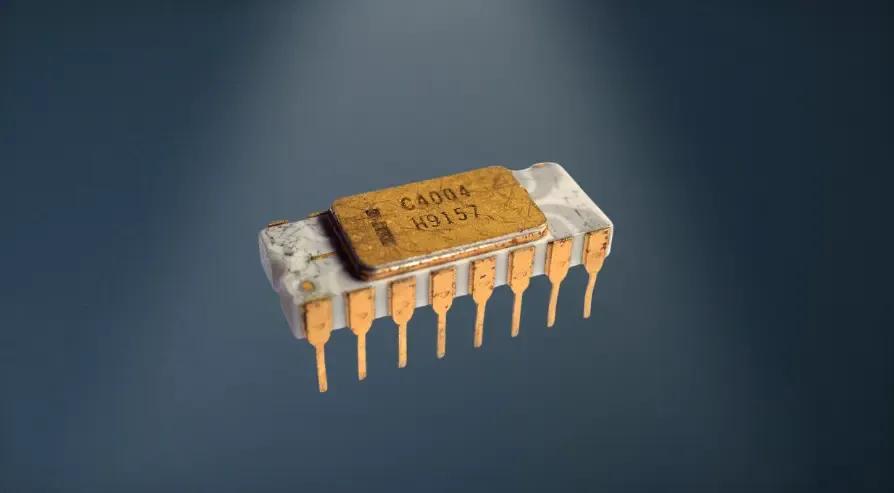

In 1971, Intel introduced the 4004, a 4-bit microprocessor that revolutionized the world of electronics and computing. As Intel’s first microprocessor, the 4004 was a groundbreaking achievement that compacted the power of an entire computer central processing unit (CPU) onto a single silicon chip. It marked the birth of modern microprocessors — the invisible engines powering everything from calculators to the most advanced computing systems of today.
The creation of the first Intel microprocessor wasn’t merely an incremental step; it was a transformative leap forward. Developed in collaboration with the Japanese calculator company Busicom, the 4004 replaced complex hard-wired circuits with a programmable solution. Its small size, flexibility, and speed changed how design engineers approached hardware forever.
This article explores who developed the first microprocessor at Intel, the design innovations behind it, and how this modest 12mm² chip laid the foundation for modern computing.
Who Developed the First Microprocessor at Intel?
The development of the first microprocessor by Intel was a collaborative effort that blended innovative thinking, engineering skill, and cross-border partnerships. The Intel 4004 would not exist without the contributions of three key individuals: Ted Hoff, Federico Faggin, and Masatoshi Shima. Together, they turned a revolutionary idea into reality.
Ted Hoff: The Architect of the Concept
In 1969, Ted Hoff, a young engineer at Intel, conceptualized the architecture of the 4004. At the time, Intel was approached by the Japanese company Busicom to design a custom chipset for its calculator line. Hoff saw an opportunity to replace the conventional hard-wired logic circuits with a single programmable chip — a bold idea that broke the norms of fixed-function designs. Hoff’s architectural vision laid the groundwork for what would become Intel’s first microprocessor.
Federico Faggin: The Silicon Innovator
While Hoff provided the architecture, it was Federico Faggin who made the design a reality. Faggin, an experienced physicist and silicon designer, joined Intel in 1970 and took charge of implementing the 4004 in hardware. Leveraging his expertise in silicon gate technology, Faggin refined the chip’s design, making it both compact and reliable. His innovative methods allowed Intel to integrate 2,300 transistors onto a single 12mm² chip, which was an unprecedented feat at the time.
Masatoshi Shima: The Logic Designer
Busicom engineer Masatoshi Shima played a critical role in defining the logic and functional requirements of the 4004. Shima worked closely with Intel to ensure the chip met the calculator’s needs, and his collaboration with Hoff and Faggin bridged the gap between architectural vision and practical implementation.
Together, Hoff, Faggin, and Shima achieved what seemed impossible: a programmable CPU on a single chip. The 4004 was born out of a blend of architectural brilliance, cutting-edge silicon design, and meticulous logic development. This triumphant partnership paved the way for the future of semiconductor technology.
The Evolution of the 4004: How the First Microprocessor by Intel Was Born
The story of the first microprocessor by Intel begins with a problem — and an opportunity. In 1969, Intel, still a young semiconductor company primarily focused on memory chips, was approached by the Japanese firm Busicom. The request? To develop a custom set of integrated circuits for Busicom’s new line of calculators. At the time, calculator designs relied on hard-wired logic circuits — dedicated, inflexible chips tailored for specific functions.
A Radical Idea
When Intel’s engineer Ted Hoff reviewed Busicom’s request, he proposed a radically different solution. Rather than designing a collection of fixed-function chips, Hoff envisioned a single-chip CPU — a programmable processor that could perform multiple tasks using software instructions. This innovative idea would simplify the hardware design and make it far more flexible.
Up until then, CPUs required multiple chips to function. The challenge was to consolidate that power onto a single piece of silicon — a feat never accomplished before.
From Concept to Reality
Turning Hoff’s vision into reality required overcoming significant engineering hurdles. Intel assigned physicist and silicon design expert Federico Faggin to the project. Faggin, who joined Intel in early 1970, brought his expertise in silicon gate technology — a critical advancement that allowed for more compact and efficient transistors compared to older metal-gate designs.
Working with Hoff and Busicom engineer Masatoshi Shima, Faggin refined the architecture, optimized the logic, and implemented the design. The result was the Intel 4004, a 4-bit central processing unit capable of handling:
- 2,300 transistors packed into a 12mm² chip.
- A 10-micron process technology, enabling miniaturization.
- A clock speed of 740 kHz — modest by today’s standards but groundbreaking in 1971.
The Release of the First Microprocessor by Intel
By late 1971, the Intel 4004 was ready. Intel’s first microprocessor delivered what no other product had before: a programmable computing engine on a single chip. This innovation marked the transition from hardware-specific logic to general-purpose processing, which unlocked a level of versatility and scalability that was unheard of at the time.
The 4004 initially powered calculators, but its implications reached far beyond. It proved that processors could be miniaturized and mass-produced, which set the stage for future CPUs like the Intel 8008, 8080, and, eventually, the microprocessors that drive today’s technology.
Key Specifications of Intel’s First Microprocessor
As Intel’s first microprocessor, the 4004 combined groundbreaking technology and compact design that, while modest by modern standards, delivered revolutionary specifications that laid the foundation for all future microprocessors.
Technology and Transistor Count
The Intel 4004 was fabricated using 10-micron process technology that enabled the integration of 2,300 transistors on a silicon die measuring just 12mm². At the time, this was a staggering achievement, proving that complex digital logic could be miniaturized onto a single chip.
4-Bit Architecture
The 4004 featured a 4-bit word size, meaning it processed data in 4-bit chunks at a time. While limited compared to modern 8, 16, or 32-bit processors, this architecture was ideal for early applications like calculators, which required basic arithmetic and control functions.
- Instruction Set: The processor supported 46 instructions, including data manipulation, arithmetic, and control operations.
- Register Size: The 4004 had 16 registers, each 4 bits wide to allow for efficient data handling.
Clock Speed
The 4004 operated at a clock speed of 740 kHz to execute up to 92,600 instructions per second, which enabled real-time performance in small applications like calculators and early embedded systems.
Memory and Addressing
The Intel 4004 supported:
- 640 bytes of program memory (ROM).
- 1280 bits of data memory (RAM).
These limits reflected the simple applications the 4004 was designed for, but the architecture introduced programmable flexibility that set it apart from hardwired chips. The 4004 could address up to 4KB of memory, a groundbreaking feature for its time.
Power and Efficiency
Operating at low power, the 4004 consumed approximately 500 milliwatts. Its efficiency allowed it to fit into small devices without generating excessive heat.
Why These Specifications Mattered
The ability to integrate a programmable CPU onto a single chip meant that engineers could replace custom hardware designs with a general-purpose processor. This innovation made systems easier to design, produce, and scale, which drove the rapid evolution of electronic devices.
The Intel 4004’s compact design, 4-bit architecture, and efficient instruction set may seem simple now, but it marked the dawn of modern computing and demonstrated that processors could deliver immense functionality in a tiny form factor.
Design Methodology: A Leap Toward Programmable Chips
The creation of Intel’s first microprocessor, the 4004, was a revolutionary shift in design methodology because it transformed how engineers approached chip design by proving that complex, programmable logic could be condensed onto a single piece of silicon.
The Problem with Hard-Wired Logic
Before the 4004, most integrated circuits relied on hard-wired logic — chips built for fixed, specific tasks. While functional, this approach meant any changes to a system required redesigning the hardware from scratch.
The 4004 changed everything because it was a programmable CPU: one chip capable of executing various tasks by loading software instructions. This idea allowed engineers to reprogram the chip for different applications without altering the hardware itself.
Silicon Gate Technology: Unlocking Integration
The leap to a programmable chip was made possible by advances in silicon gate technology pioneered by Federico Faggin. Compared to earlier metal gate MOS (Metal-Oxide-Semiconductor) transistors, silicon gate transistors offered:
- Higher speed: Faster signal switching.
- Smaller size: Increased transistor density on the chip.
- Improved reliability: Reduced power consumption and heat generation.
Silicon gate technology enabled the integration of 2,300 transistors into a tiny 12mm² die, a milestone for 1971. Without this innovation, the compact size and power efficiency of the Intel 4004 would not have been possible.
The 4-Bit Programmable Architecture
The architecture of the Intel 4004 was simple yet powerful:
- 4-bit data processing: A word size of 4 bits was sufficient for early applications like calculators and control systems.
- Programmable instruction set: The 4004 executed 46 instructions, including arithmetic, data manipulation, and flow control.
- Modular design: The processor worked with supporting chips (ROM, RAM, and I/O) to create a complete computing system.
This architecture allowed engineers to use a general-purpose CPU for multiple tasks — a radical departure from hard-wired designs.
A Collaborative Development Approach
While Busicom provided the application requirements (a chipset for calculators), Intel’s engineers focused on refining the design and implementing it in silicon. This collaboration exemplified a new approach to chip design: understanding customer needs, proposing programmable solutions, and leveraging advancements in fabrication technology to make it a reality.
The Legacy of the 4004 Design Methodology
The design methodology behind the first Intel microprocessor laid the foundation for all future processors. By shifting from hard-wired logic to a programmable architecture, Intel demonstrated that a single chip could be versatile, scalable, and efficient.
This leap allowed engineers to develop systems faster, reduce costs, and deliver flexible solutions across industries. The principles behind the 4004 — programmability, modularity, and silicon integration — continue to influence modern microprocessor design to this day.
In short, the 4004 wasn’t just a technological marvel; it was proof that programmable chips were the future, setting the stage for the microprocessors that now power everything from embedded systems to supercomputers.
