ASET-24.000MHZ-Y-T

XTAL OSC XO 24.0000MHZ CMOS SMD

Quality Control: Learn More

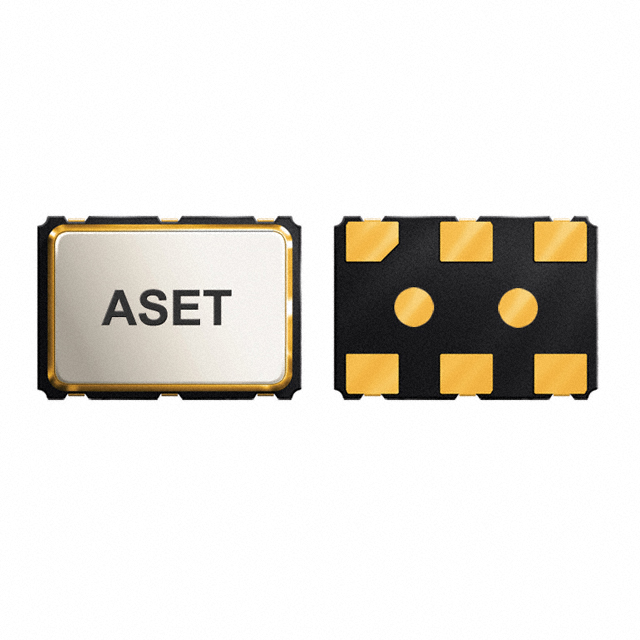

Abracon LLC ASET Series crystal oscillator, part number ASET-24-000MHZ-Y-T. This 24 MHz XO features a CMOS output and operates from a 3V supply. Designed for surface mounting, it is provided in a 6-SMD, No Lead package with dimensions of 0.126" L x 0.098" W (3.20mm x 2.50mm) and a maximum seated height of 0.047" (1.20mm). The device offers an Enable/Disable function and maintains a frequency stability of ±10ppm across an operating temperature range of -40°C to 85°C. Maximum supply current is 7mA. This component is suitable for applications in consumer electronics and industrial automation.

Additional Information

Series: ASETRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:

Download Free CAD Model:

Technical Details:

Packaging	Tape & Reel (TR)
Package / Case	6-SMD, No Lead
Size / Dimension	0.126"" L x 0.098"" W (3.20mm x 2.50mm)
Mounting Type	Surface Mount
Output	CMOS
Function	Enable/Disable
Type	XO (Standard)
Operating Temperature	-40°C ~ 85°C
Frequency Stability	±10ppm
Voltage - Supply	3V
Ratings	-
Current - Supply (Max)	7mA
Height - Seated (Max)	0.047"" (1.20mm)
Absolute Pull Range (APR)	-
Frequency	24 MHz
Base Resonator	Crystal
