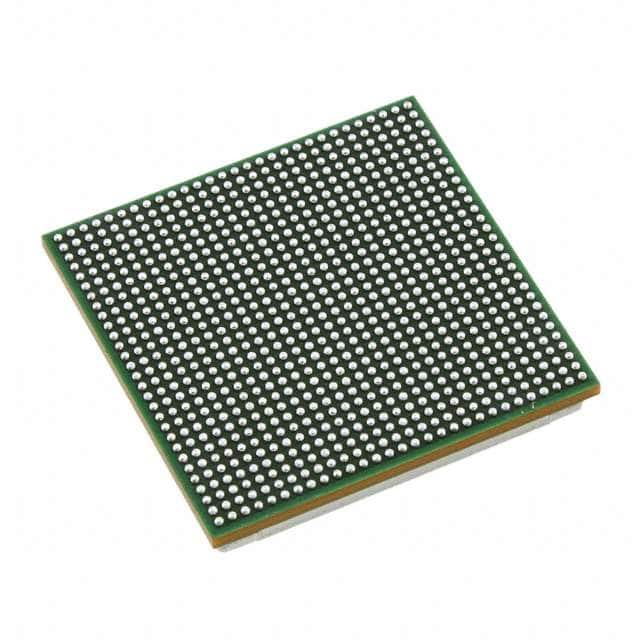

TMS320C6670AXCYPA

IC DSP FIX/FLOAT POINT 841FCBGA

Categories: DSP (Digital Signal Processors)

Quality Control: Learn More

Texas Instruments TMS320C6670AXCYPA is a highly capable Digital Signal Processor from the TMS320C66x series. This fixed/floating-point DSP operates at a 1GHz clock rate, featuring a robust 841-FCBGA package. It offers 6.25MB of on-chip RAM and 128kB of ROM. Connectivity is extensive, supporting interfaces such as EBI/EMI, Ethernet MAC, PCIe, I2C, SPI, SRIO, and UART. Designed for demanding applications, it operates within a temperature range of -40°C to 100°C (TC). This component is suitable for surface mounting and is supplied in a tube. Key voltage requirements include 1.00V for the core and 1.0V, 1.5V, or 1.8V for I/O. Applications for this device are found in telecommunications, radar systems, and high-performance computing.

Additional Information

Series: TMS320C66xRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:

Download Free CAD Model:

Technical Details:

Packaging	Tube
Package / Case	841-BFBGA, FCBGA
Mounting Type	Surface Mount
Interface	EBI/EMI, Ethernet MAC, PCIe, I2C, SPI, SRIO, UART
Type	Fixed/Floating Point
Operating Temperature	-40°C ~ 100°C (TC)
Non-Volatile Memory	ROM (128kB)
On-Chip RAM	6.25MB
Voltage - I/O	1.0V, 1.5V, 1.8V
Voltage - Core	1.00V
Clock Rate	1GHz
Supplier Device Package	841-FCBGA (24x24)
