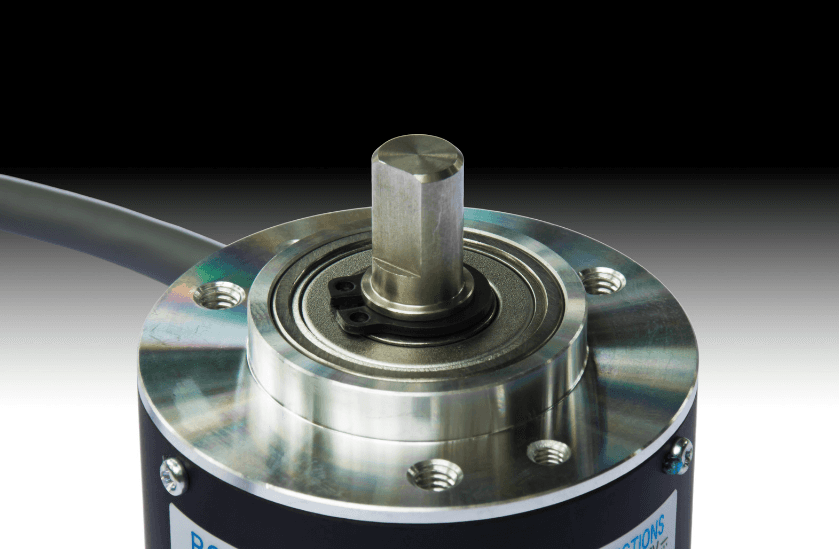

Encoders are foundational components in today’s technology that transform physical movement into data that digital systems can process and analyze. Whether in industrial automation, robotics, or everyday devices like printers, encoders enable machines and systems to understand and respond to their environments in real-time.
At its core, an encoder functions as a translator that converts analog movements, such as rotational or linear motion, into digital signals. This capability is invaluable in automation, where real-time feedback loops ensure consistent performance and accuracy in systems ranging from factory machinery to robotic arms. With applications that span automotive, medical equipment, and aerospace, encoders are integral to the precise measurement and feedback required for effective control in high-stakes environments.
Encoders are not just measurement tools; they are enablers of the intelligent, responsive systems that define modern automation and control.
What are Encoders: How They Work and Why They Matter
Encoders are specialized sensors that capture information about movement — such as speed, position, and direction — and convert this information into signals that control systems can interpret. They are indispensable in systems that rely on accurate positioning and feedback, like industrial automation and robotics.
At a fundamental level, encoders work by detecting motion and converting it into readable data. There are several methods to achieve this, depending upon the type of encoder. For example, optical encoders use a light source and photodetector to read a coded pattern on a disk. When the disk moves, light passes through or reflects off specific segments, and the encoder translates these patterns into electrical signals that represent position or speed. Magnetic encoders, on the other hand, rely on magnetic fields and sensors to detect rotation or linear movement, making them well-suited for environments where optical systems might fail due to dust or moisture.
This data translation is critical for automated control systems, which rely on real-time information to make precise adjustments. For instance, in a robotic arm, encoders provide exact positional feedback that enables the arm to move accurately and repeat specific tasks with high precision. In the automotive sector, encoders are used in anti-lock braking systems (ABS) to continuously monitor wheel speed. Similarly, in manufacturing, encoders provide the precision necessary for CNC machines to shape parts to exact specifications.
Encoders are more than just sensors — they’re fundamental building blocks in any system that demands reliable, accurate feedback for control and automation. Their ability to translate physical movement into actionable data makes them indispensable in modern engineering and automation.
Types of Encoders and Their Applications
Encoders come in various forms, each suited to specific applications and environmental conditions. Here’s a breakdown of the main types of encoders and where they excel.
Optical Encoders
Optical encoders are among the most widely used due to their high accuracy and resolution. They operate by passing light through or reflecting it off a pattern on a coded disk, which is then read by a photodetector. The resulting pattern is translated into digital signals that represent movement.
Optical encoders come in two primary forms: absolute and incremental. Absolute Optical Encoders produce a unique digital code for each position, which means they can track position precisely even after power loss. Incremental Optical Encoders track position by counting steps from a reference point, making them suitable for applications where relative movement data is sufficient.
- Applications: Optical encoders are used in robotics, medical devices, and manufacturing equipment where high resolution and accuracy are essential. For instance, in robotics, absolute optical encoders help in tracking exact positions, while incremental encoders are often employed in motor speed controls.
Magnetic Encoders
Magnetic encoders use a magnet and sensors to detect motion, making them particularly resilient to environmental factors like dust, moisture, and vibration. Instead of light, they rely on changes in magnetic fields to generate signals, making them a reliable choice for challenging environments.
Like optical encoders, magnetic encoders also come in absolute and incremental forms, with each suited to different tasks.
- Applications: Due to their durability, magnetic encoders are often used in heavy machinery, automotive systems, and outdoor equipment. In the automotive industry, for instance, they are integral to anti-lock braking systems (ABS) and steering control, where they provide accurate position feedback under harsh conditions.
Capacitive Encoders
Capacitive encoders work by measuring changes in capacitance between two conductive plates. These encoders are highly durable and resistant to environmental interference like dust and moisture, similar to magnetic encoders, but have a smaller footprint.
- Applications: Capacitive encoders are often used in compact or delicate devices where space is limited, such as medical instruments, smartphones, and other consumer electronics. Their resistance to environmental factors also makes them suitable for aerospace and automotive applications.
Linear vs. Rotary Encoders
Encoders can also be categorized by the type of motion they track: linear or rotary. Rotary Encoders measure angular position or rotation and are commonly used in motors and robotic arms. Rotary encoders can be optical, magnetic, or capacitive, depending on the application’s needs. Linear Encoders measure straight-line displacement and are frequently used in CNC machinery, measuring instruments, and robotics, where precise linear positioning is required.
- Applications: Linear encoders are ideal for applications like CNC machinery, where precise control over distance and speed is crucial. Rotary encoders, on the other hand, are commonly found in electric motors, automation systems, and servos for detecting rotational position and speed.
Each type of encoder brings specific strengths to different environments and use cases to enable accurate control and feedback. By understanding the capabilities and ideal applications for each type, engineers and designers can select the best-fit encoder technology for their requirements to optimize performance and reliability.
Key Specifications to Consider When Choosing Encoders
When selecting an encoder, several specifications influence the device’s performance and compatibility with specific applications. Here’s a breakdown to guide the decision-making process:
Resolution
Resolution is usually measured in pulses per revolution (PPR) for rotary encoders, or in pulses per unit length for linear encoders, and refers to the smallest detectable movement by the encoder. Higher resolution offers greater precision, which is essential for applications requiring fine control, such as robotic arms or CNC machines. For instance, an optical encoder with 5,000 PPR will provide more detailed feedback than one with 1,000 PPR, though at a higher cost and potentially greater processing demands.
Accuracy
Accuracy is the encoder’s ability to precisely measure the true position, speed, or angle, and is distinct from resolution. While high-resolution encoders can detect small increments, they may still introduce small errors in absolute positioning. Absolute encoders generally offer higher accuracy, especially for positioning tasks, as they provide unique position values throughout their range of motion.
Environmental Tolerance
The operating environment heavily influences the choice of encoder, and environmental tolerance includes factors like temperature range, dust, moisture, and vibration resistance. Optical encoders, for example, are sensitive to dust and dirt, which makes them better suited for clean environments. Magnetic encoders, however, offer higher durability in harsh environments, and are ideal for heavy industrial or automotive applications where exposure to contaminants or extreme conditions is common.
Speed and Bandwidth
The maximum speed at which an encoder can operate while maintaining accuracy is crucial for applications with rapid motion. High-speed machinery or robotic systems require encoders with fast response times and high bandwidth. For example, in high-speed automation, encoders must keep up with rapid movement without signal degradation. Optical encoders typically operate at higher speeds, but that feature may come at the expense of durability in harsh conditions.
Output Signal and Interface Compatibility
Different applications and systems require specific output signals, such as digital (TTL, HTL) or analog signals. Furthermore, compatibility with interfaces like SSI, BiSS, or Ethernet is essential to ensure smooth integration with the control system. High-end applications, such as those in industrial automation, often rely on encoders with digital interfaces for noise-resistant, high-speed communication, whereas analog output can suffice for less sensitive applications.
Power Consumption
Power consumption is critical in portable and battery-operated devices, where energy efficiency is a priority. Encoders with lower power requirements are ideal for battery-powered equipment in remote and mobile devices — magnetic encoders generally consume less power compared to their optical counterparts.
Form Factor and Mounting Options
The physical size and mounting requirements of an encoder need to fit seamlessly into the design of the system. Compact encoders are favored in devices with limited space, like medical equipment or compact robotics, while larger industrial systems may allow for bulkier, more robust encoders. Additionally, mounting options (such as shaft or hollow shaft configurations) should align with the mechanical requirements of the equipment to ensure accurate and stable feedback.
Choosing the right encoder involves balancing these specifications according to the application’s precision, durability, speed, and environmental demands. By carefully considering these factors, engineers can select an encoder that enhances performance, ensures reliability, and matches the technical requirements of their specific systems.
The Essential Role of Encoders in Advanced Systems
Encoders are foundational components in modern automation, robotics, manufacturing, and countless other industries. By converting motion into data, they enable precise control, feedback, and monitoring in complex systems. As encoder technology advances, we see them becoming smaller, more energy-efficient, and capable of higher resolutions — all while adapting to increasingly harsh environments and integrating seamlessly into connected, IoT-enabled infrastructures.
The growing trends of miniaturization, enhanced durability, smart connectivity, and even AI integration are shaping encoders to meet the demands of advanced applications.
